October 23, 2017

Turn the lights on in your automated applications deployment - part 2

In the previous post we described the benefit of using Application Automation in conjunction with Network Analytics in the Data Centre, a Public Cloud or both. We described two solutions from Cisco that offer great value individually, and we also explained how they can multiply their power when used together in an integrated way.
This post describes a lab activity that we implemented to demonstrate the integration of Cisco Tetration (network analytics) with Cisco CloudCenter (application deployment and cloud brokerage), creating a solution that combines deep insight into the application architecture and into the network flows.
The Application Profile managed by CloudCenter is the blueprint that defines the automated deployment of a software application in the cloud (public and private). We add information in the Application Profile to automate the configuration of the Tetration Analytics components during the deployment of the application.

Deploy a new (or update an existing) Application Profile with Tetration support enabled

Intent of the lab:
To modify an existing Application Profile or model a new one so that Tetration is automatically configured to collect telemetry, leveraging also the automated installation of sensors.
A Tetration Injector service is added to the application tiers to create a scope, define dedicated sensor profiles and intents, and automatically generate an application workspace to render the Application Dependency Mapping for each deployed application.
Step 1 – Edit an existing Application Profile
Cisco CloudCenter editor and the Tetration Injector service

Step 2 – Drag the Tetration Injector service into the Topology Modeler

Cisco CloudCenter editor

Step 3 – Automate the deployment of the app: select a Tetration sensor type to be added
Tetration sensors can be of two types: Deep Visibility and Deep Visibility with Policy Enforcement. The Tetration Injector service allows you to select the type you want to deploy for this application. The deployment name will be reflected in the Tetration scope and application name.

Defining the Tetration sensor to be deployed

Two types of Tetration sensors

In addition to deploying the sensors, the Tetration injector configures the target Tetration cluster and logs all configuration actions leveraging the CloudCenter centralized logging capabilities.
The activity is executed by the CCO (CloudCenter Orchestrator):
CloudCenter Orchestrator

Step 4 – New resources created on the Tetration cluster
After the user has deployed the application from the CloudCenter self-service catalog, you can go to the Tetration user interface and verify that everything has been created to identify the packet flow that will come from the new application:
Tetration configuration

In addition, the software sensors (also called Agents) are recognized by the Tetration cluster:

Tetration agents

Tetration agents settings

Tetration Analytics – Application Dependency Mapping

An application workspace has been created automatically for the deployed application, through the Tetration API: it shows the communication among all the endpoints and the processes in the operating system that generate and receive the network flows.
The following interactive maps are generated as soon as the network packets, captured by the sensors when the application is used, are processed in the Tetration cluster.
The Cisco Tetration Analytics machine learning algorithms grouped the applications based on distinctive processes and flows.
The figure below shows how the distinctive process view looks like for the web tier:
Tetration Application Dependency Mapping

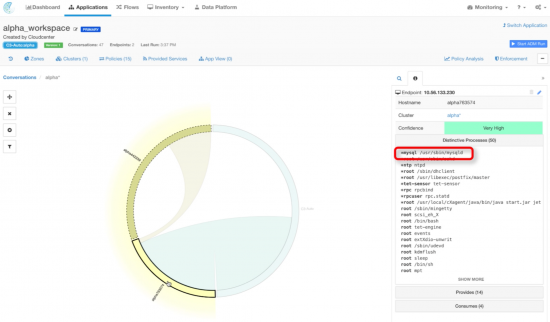

The distinctive process view for the database tier:

Tetration Application Dependency Mapping

Flow search on the deployed application:

Detail of a specific flow from the Web tier to the DB tier:

 Tetration deep dive on network flow

Terminate the application: De-provisioning
When you de-provision the software application as part of the lifecycle managed by CloudCenter (with one click), the following cleanup actions will be managed by the orchestrator automatically:
  • Turn off and delete VMs in the cloud, including the software sensors
  • Delete the application information in Tetration
  • Clear all configuration items and scopes


The combined use of automation (deploying both the applications and the sensors and configuring the context in the analytics platform) as well as the telemetry data that are processed by Tetration help in building a security model based on zero-trust policies.
The following use cases enable a powerful solution thanks to the integrated deployment:
  • Get communication visibility across different application components
  • Implement consistent network segmentation
  • Migrate applications across data center infrastructure
  • Unify systems after mergers and acquisitions
  • Move applications to cloud-based services
Automation limits the manual tasks of configuring, collecting data, analyzing and investigating. It makes security more pervasive, predictive and even improves your reaction capability if a problem is detected.
Both platforms are constantly evolving and the RESTful API approach enables extreme customization in order to accommodate your business needs and implement features as they get released.
The upcoming Cisco Tetration Analytics release – 2.1.1 – will bring new data ingestion modes like ERSPAN, Netflow and neighborhood graphs to validate and assure policy intent on software sensors.
You can learn more from the sources linked in this post, but feel free to add your comments here or contact us to get a direct support if you want to evaluate how this solution applies to your business and technical requirements.


This post is co-authored with a colleague of mine, Riccardo Tortorici.
He is the real geek and he created the excellent lab for the integration that we describe here, I just took notes from his work.



October 20, 2017

Turn the lights on in your automated applications deployment - part 1

A very common goal for software designers and security administrators is to get to a Secure Zero-Trust model in an Application-Centric world.
They absolutely need to avoid malicious or accidental outages, data leaks and performance degradation. However this can be very difficult to achieve sometimes, due to the complexity of distributed architectures and the coexistence of many different software applications in the modern shared IT environment.
Two very important steps in the right direction can be Visibility and Automation. In this blog, we will see how the combination of two Cisco software solutions can contribute towards achieving this goal.
This is the description of a lab activity, that we implemented to show the advantage from the integration of Cisco Tetration Analytics (providing network analytics) with Cisco CloudCenter (application deployment and cloud brokerage), creating a really powerful solution that combines deep insight into the application architecture and into the network flows.

Telemetry from the Data Center

Tetration provides telemetry data for your applications

Cisco Tetration Analytics captures telemetry from every packet and every flow, delivers pervasive real-time and historical visibility across your data center, providing a deep understanding of application dependencies and interactions. You can learn more here: http://cs.co/9003BvtPB.
Main use cases for Tetration are:
  • Pervasive Visibility
  • Security
  • Forensics/Troubleshooting, Single Source of Truth
The architecture of Tetration Analytics is made of a big data analytics cluster and two types of sensors: hardware and software based. Sensors can be either in the switches (hw) or in the servers (sw).
Data is collected, stored and processed through a high performance customized Hadoop cluster, which represents the very inner core of the architecture. The software sensors will collect the metadata information from each packet’s header as they leave or enter the hosts. In addition, they will also collect process information, such as the user ID associated with the process and OS characteristics.

Tetration high level architecture
Tetration high level architecture

Tetration can be deployed today in the Data Center or in the cloud (AWS). The choice of the best placement depends on whether you have more deployments on cloud or on premises.
Thanks to the knowledge obtained from the data, you can create zero-trust policies based on white lists and enforce them across every physical and virtual environment. By observing the communication among all the endpoints, you can define exactly who is allowed to contact who (white list, where everything else is denied by default). This applies to both Virtual Machines and Physical Servers (bare metal), including your applications running in the public cloud.
As an example, one of your database servers will be only accessed by the application servers running the business logic for that specific application, by the monitoring and backup tools and no one else. These policies can be enforced by Tetration itself or exported to generate policies in an existing environment (e.g. Cisco ACI).

Behavior analysis of workloads deployed everywhere
Behavior analysis of workloads deployed everywhere

Another benefit of the network telemetry is that you have visibility on any packet, any flow at any time (you can keep up to 2 years of historical data, depending on your Tetration deployment and DC architecture) among two or more application tiers. You can detect performance degradation, ie increasing latency between two application tiers and see the overall status of any complex application.

How to onboard applications in Tetration Analytics
When you start collecting information from the network and the servers into the analytics cluster, you need to give it a context. Every flow needs to be associated to applications, tenants, etc. so that you can give it business significance.
This can be done through the user interface or through the API of the Tetration cluster, matching metadata that come associated with the packet flow. Based on this context, reports and drill down inspection will give you an insight on every breath that the system does.

Automation makes Deployment of Software Applications secure and compliant

The lifecycle of Software Applications generally impacts different organizations in the IT, spreading responsibility and making it hard to ensure quality (including security) and end-to-end visibility.
This is where Cisco Cloud Center comes in. It is a solution for two main use cases:
  • modeling the automated deployment of a software stack (creating a template or blueprint for deployments)
  • brokering cloud services for your applications (different resource pools offered from a single self-service catalog). You can consume IaaS and PaaS services from any private and public cloud, with a portable automation that frees you from lock-in to a specific cloud provider.
Cisco CloudCenter: one solution for all clouds
Cisco CloudCenter: one solution for all clouds

Integration of Automated Deployment and Network Analytics

It is important to note that both platforms are very open and come with a significant support for integration API. The joint usage means benefitting from the visibility and the automation capabilities of each product:
  • Application architecture awareness (the blueprint for the deployment is created by the software architect)
  • Operating System visibility (version, patches, modules and monitoring)
  • Automation of all configuration actions, both local (in the server) and external (in the cloud environment)
Tetration Analytics
  • Application Dependency Mapping, driven by the observation of all communication flows
  • Awareness of Network nodes behavior, including defined policies and deviations from the baseline
  • Not just sampling, but storing and processing anytime metadata for any single packet in the Data Center

The table below shows how each engine provides additional value to the other one:
Leveraging the integration between the two solutions allows a feedback loop between applications design and operations, providing compliance, continuous improvement and delivery of quality services to the business.

Consequently, all the following Tetration Analytics use cases are made easier if all the setup is automated by CloudCenter, with the advantage of being cloud agnostic:
Cisco Tetration use cases
Cisco Tetration use cases

Of course one of the most tangible results claimed by this end-to-end visibility and policy enforcement is security.
More detail on the integration between CloudCenter and Tetration Analytics are described in the second part of this post, where we will demonstrate how easy it is to automate the deployment of software sensors along with the application, as well as preparing the analytics cluster to welcome the telemetry data.


This post is co-authored with a colleague of mine, Riccardo Tortorici.
He is the real geek and he created the excellent lab for the integration that we describe here, I just took notes from his work.


July 28, 2017

Protecting your border or offering a service to others?

The value of automation in the DataCenter

Everyone is aware of the value of the automation.
Many companies and individual engineers implemented various ways to save time, from shell scripts to complex programs and to fully automated IaaS solutions.

It helps reducing the so called "Shadow IT", a phenomenon that happens when developers can't get a fast enough response from the IT of the company and rush to the public cloud to get what they need. Doing that they complete and release their project soon, but sometimes troubles start with the production phase of the deployment (unexpected additional budget for the IT, new technologies that they are not ready to manage, etc.).

shadow IT happens when corporate IT is not fast enough
shadow IT happens when corporate IT is not fast enough

For sure, some departments are organized in silos (a team responsible for servers, one for storage, one for networking, one for virtual machines, of course one for security...) and the provisioning of even simple requests takes too long.

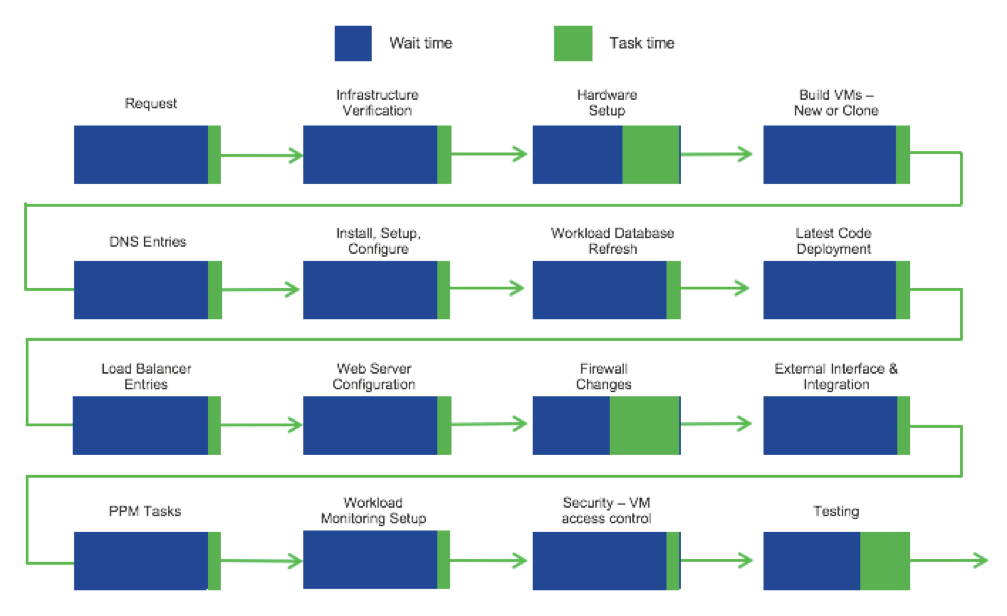

process inefficiency due to silos and wait time
process inefficiency due to silos and wait time

Pressure on the infrastructure managers

So there is inefficiency in the company, that affects the business outcome of every project.
Longer time to market for strategic initiatives, higher costs for infrastructure and people.
Finger pointing starts, to identify who is responsible for the bottleneck.

The efficiency of teams and individuals is questioned, and responsibility is cascaded through the organization from project managers to developers, to the server team, to the storage team and generally the network is at the end of the chain... so that they have no one else to blame.

Those on the top (they consider themselves on top of the value chain) believe - or try to demonstrate - that their work is slowed down by the inefficiency of the teams they depend on. They try to suggest solutions like: "you said that your infrastructure is programmable, now give me your API and I will create everything I need on demand".

Of course this approach could bring some value (not much, as we'll see in the rest of the post) but it mines the relevance of the specialists teams that are supposed to manage the infrastructure according to best practices, to apply architectural blueprints that have been optimized for the company's specific business, to know the technology in deeper detail.
So they can't accept to be bypassed by a bunch of developers that want to corrupt the system playing with precious assets with their dirty hands.

The definitive question is: who owns the automation?
Should it be left to people that know what they need (e.g. Developers)?
Should it be owned by people that know how technology works, and at the end of the day are responsible for the SLA including performances, security and reliability that could be affected by a configuration made by others (i.e. IT Administrators)?

In my opinion, and based on the experience shared with many customers, the second answer is the correct one.
By definition the developer is not an expert on security: if he can easily program a switch via its REST API to get a network segment, it’s not the same when traffic needs to be secured and inspected.

The IT admin patrols the infrastructure
The IT Admin patrolling the infrastructure

Offering a self service catalog (or API)

A first, immediate solution could be the introduction of an easy automation tool like Cisco UCS Director, that manages almost every element in a multi vendor Data Center infrastructure: from servers to networks to storage to virtualization in a single dashboard. But what is more interesting is that every atomic action you do in the GUI is also reflected in a task in the automation library, that allows you to create custom workflows lining all the tasks for a process that you want to automate.
A common example of automation workflow is the creation of a 4-hypervisors server farm.
A single workflow starts from the SAN storage creating a volume and 4 LUN, where the hypervisor will be installed to enable remote boot for the servers. Then a network is created (or the existing management network will be used) and 4 Service Profiles (the definition of a server in Cisco UCS) are created from a template, with individual ip address, mac address and wwn for each network interface. Then, zoning and masking are executed to map every new server to a specific LUN and the service profiles are associated to 4 available servers (either blades or rack mount servers). The hypervisors are installed using the PXE boot, writing the bytes in the remote storage, configured and customized, and finally added to a (new) cluster in the hypervisor manager (e.g. vCenter).

All this process takes less then one hour: you could launch it and go to lunch, when you're back you'll find the cluster up and running. Compare it to a manual provisioning of the same server farm, eventually performed by a number of different teams (see the picture above): it would take days, sometimes weeks.
Other use cases are simpler: maybe just creating a 3 tier application with VM and dedicated networks.

Once the automation workflow has been built and validated, it can be used by the IT admin or by the Operations everyday, to save time and ensure consistent outcome (no manual errors). But it can also be offered as a service to all the departments that depend on the IT for their projects.

You can build a service catalog with enterprise features: multitenancy, role based access control, reporting, chargeback, approvals, etc. But you can also offer (secured) access to the API to launch the workflow, offering a degree of autonomy to your consumers. Eventually, using a resource quota: you don’t want everyone to be able to create dozens of VMs every hour if the capacity of the system can't sustain it.

They will appreciate the efficiency improvement, for sure.

What's in it for me?

If you allow your internal clients to self serve, you will:

  • get less requests for trivial tasks, that consume time and give no satisfaction (let them play with it),
  • be the hero of the productivity increase (no requests pending in your queue)
  • dedicate your time and skill to designing the architectural blueprint that will be offered as a service to your clients (so that everybody plays according to your rules)
  • use policy based provisioning, so that you define the rules just once and map them to tenants and environments: every deployment will inherit them
  • maintain control on resource consumption and system capacity, hence on costs and budget
  • increase your relevance: they will come to you to discuss their needs, propose new services, collaborate in governance

Example: network provisioning

The discussion above is valid for the entire infrastructure in the Data Center.
Now I tell you the story of a customer that implemented it specifically for the networking.

They were influenced by the trend about SDN and initially they were caught in the marketing trap "SDN means software implemented networking, hence overlay". Then they realized the advantage provided by ACI and selected it as the SDN platform ("software defined networking", thanks to the software controller and the ACI policy model).

Developers and the Architecture department asked to access the API exposed to self provision what they needed for new projects, but this was seen as an invasion of the property (see the picture with the dirty hands).

It would have worked, but it implied a transfer of knowledge and delegation of responsibility on a critical asset. At the end of the day, if developers and software designers had knowledge in networking, specialists would not exist.

So the network admins built a number of workflows in UCS Director, using the hundreds of tasks offered by the automation library, to implement some use cases ranging from basic tasks (allow this VM to be reached from the DMZ) to more complex scenarios (create a new environment for a multi tier application including load balancer and firewall configuration, plus access from the monitoring tools, with a single request).

3 tier application blueprint
Blueprint designed in collaboration with Security and Software Architects

Graphical editor for the workflows, with the tasks library
Graphical Editor for the workflow

These workflows are offered in a web portal (a service catalog is offered by UCSD out of the box) and through the REST API exposed by UCSD. Sample calls were provided to consumers as python clients, powershell clients and Postman collections, so that the higher level orchestration tool maintained by the Architecture dept was able to invoke the workflows immediately, inserting them in the business process automation that was already in place.

Example of python client running a UCSD workflow
Example of python client running a UCSD workflow

All the executions of the workflows - launched through the self service catalog or through the REST API - are tracked in the system and the administrator can inspect the requests and their outcome:

The IT admin can audit the requests for the automation workflows
The Service Requests are audited and can be inspected and rolled back

 Any run of the workflow can be inspected in full detail, look at the tabs in the window:

The IT admin can inspect any run of the workflows
The Admin has full control (see the tabs in the window)
